    Impact Device / Probe Portable Hardness Tester Leeb Hardness Tester

    Ask Lasest Price
    Brand Name : SADT
    Model Number : -
    Certification : -
    Price : USD150-1800/Pcs
    Payment Terms : Western Union, T/T, paypal
    Supply Ability : 500pcs/month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Impact Device / Probe Portable Hardness Tester Leeb Hardness Tester

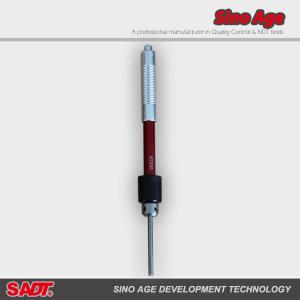

    Impact device/Probe for IMPACT DEVICE Leeb hardness tester

    Various impact devices includes analog impact device, digital impact device, wireless impact device, universal impact device and unique reading probe, they are designed for Leeb hardness testers, which make the testers suitable for testing the hardness of all metals. They are widely used in the industry of power, petro chemistry, air space, vehicle, machine and so on.

    IMPACT DEVICE

    Analog impact device with cable
    Impact Device D
    Impact Device DC
    Impact Device D+15
    Impact Device DL
    Impact Device C
    Impact Device E
    Impact Device G

    Universal impact device with cable
    Impact Device D
    Impact Device DC
    Impact Device D+15
    Impact Device DL
    Impact Device C
    Impact Device E
    Impact Device G

    Digital impact device with cable
    Impact Device D
    Wireless impact device
    Impact Device D
    Impact Device DC
    Impact Device D+15
    Impact Device DL
    Impact Device C

    Reading impact device
    RP Reading Probe

    Specification

    Impact Device (Probe)Description
    DUniversal standard unit for majority of hardness testing assignments.
    DCExtremely short impact device, other specs identical with type D.
    Application:Highly confined spaces.
    Holes and cylinders.
    Internal measurements on assembled machines
    D+15Slim front section
    Application:Grooves and recessed surfaces
    DLExtremely slim front section.
    Application:Extremely confined spaces
    Base of grooves
    CReduced impact energy ( compared with type D)
    Application:Surface hardened components, coatings
    Minimum layer thickness: 0.2mm
    Thin walled or impact sensitive components (small measuring indenta­tion)
    ESynthetic diamond test tip (approx.5000 HV)
    Application:Extremely high hardness measurement such as high carbon steel up to 1200 HV
    GEnlarged test tip, increased impact energy(approx. 9 times that of type D)
    Application:Brinell hardness range only
    Heavy cast and forged parts with lower demands on surface finish


    _01_02

    _04_05_06_07_08
