Introduction

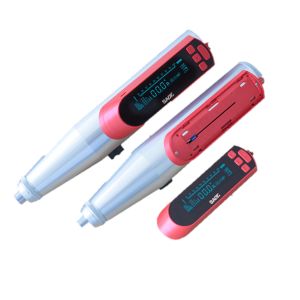

HT-225DS is an innovation based on the HT-225D, which digital part
(data processor) can be separated from main body on site and
coupled with mechanical hammer easily by a simple push. So once the
mechanical hammer brokes during testing, you can easily exchange
another mechanical hammer and continue to work. Its mechanical
hammer can work as normal analog test hammer without digital part.
HT-225DS means more convenient, more cost saving and more flexible.
HT-225DS has Bluetooth and
data in memory can be downloaded to PC or micro printer wirelessly
by Bluetooth or USB port by cable.
Key feature
High contrast OLED display
All setup can be made on site
Automatic calculating compressive strength
Automatic correc tion of impac t direc tion
All data will be stored in memor y
All data can be transferred to PC by USB cable or Bluetooth
Dual display for analogue ruler and digital value
Digital/Mechanical 2-in-1
Specification
| Model | HT-225DS | HT-225D | HT-75D | HT-20D |
| Type | Digital/Mechanical 2-in-1 | Digital Only |
| Display | OLED digital |
| Measuring range | 10-100N/mm2 | 1-25N/mm2 |
| Accuracy | ±0.1R |
| Impact energy | 0.225kgm (2.207Nm) for testing ordinary building and bridge
construction | 0.075kgm (0.735Nm) for testing small and impact-sensitive parts of
concrete or artificial brick | 0.020kgm (0.196Nm) for testing mortar products |
| Communication | USB2.0 or Bluetooth |
| Printing | Bluetooth micro printer (optional) |
| Storage | 1000 parts, 256 data for each part |
| Operating temperature | -40º-60ºC |
| Power supply | 3.7V Li-ion rechargeable battery charged via USB port |
| Dimension (mm) | 280x75x60 |
Standard package
HT-225DS/HT-225D/HT-75D/
HT-20D
main unit 1
Grinding wheel 1
USB cable 1
USB charger 1
Software CD 1
Operation manual 1
Carrying case 1
