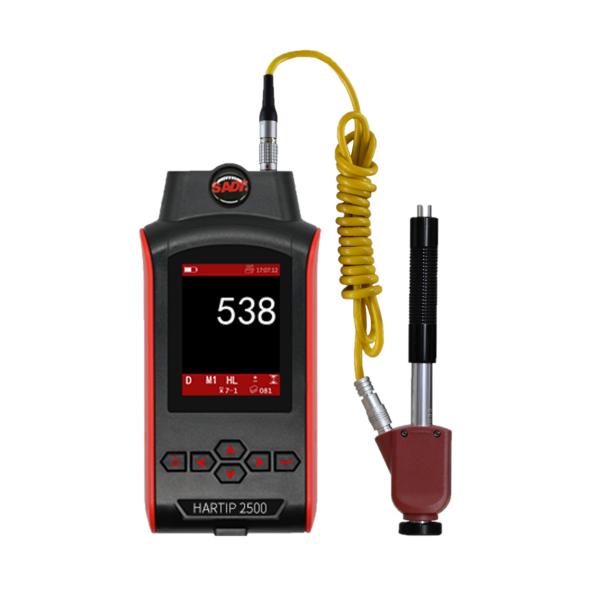

Portable Hardness Tester HARTIP2500 + RP Reading Probe

RP reading probe is an impact device for Leeb hardness tester, which not only can work with SADT series hardness tester as external probe with cable, but also can work independently as a single tester. There is a Li-ion battery inside the probe, which can be charged via USB supplier. All parameters of the tester can be set from main tester. The main setup of material and scale from factory default is steel and HRC, which can meet much of routine job for hardness testing. HARTIP 2500 + reading probe become a cost effective option - One payment for Two.

Advantages

›› Equipped with digital probes only
›› Cost- effec tive with reading probe (optional)
›› High repeatability accuracy: +/-2 HL (or 0.3% @HL800)
›› High linear accuracy for any angles
›› TFT color display
›› Auto compensate error for different impac t direc tion
›› Powered by AA batter y or USB power supply
›› The tester can be attrac ted to the workpiece with magnetic base (optional)
›› Statistics value can be calculated automatically
›› Up to 10 kinds of menu language
›› Data managing sof tware on PC
›› Power on/off automatically or manually

Specification

1. Special Features of Impact Devices

   Type	Brief description
   D	Universal standard unit for majority of hardness testing assignments.
   DC	Extremely short impact device, other specs identical with type D.
   	Application:	- highly confined spaces
   		- holes and cylinders
   		- internal measurements on assembled machines
   D+15	Slim front section
   	Application:	- grooves and recessed surfaces.
   DL	Extremely slim front section
   	Application:	- extremely confined spaces
   		- base of grooves
   C	Reduced impact energy ( compared with type D).
   	Application:	- surface hardened components, coatings
   		- minimum layer thickness: 0.2mm.
   		- thin walled or impact sensitive components (small measuring indentation).
   E	Synthetic diamond test tip (approx.5000 HV).
   	Application:	- extremely high hardness measurement such as high carbon steel up to 1200 HV
   G	Increased impact energy(approx. 9 times that of type D)
   	Application:	- Brinell hardness range only
   		- heavy cast and forged parts with lower demands on surface finish.

Standard package
HARTIP 2500 main unit 1
Digital probe D 1
Test block D 1
Small support ring 1
Cleaning brush 1
Probe cable 1
Software
USB cable 1
Operation manual 1
Test Certificate 1
Carrying case 1
