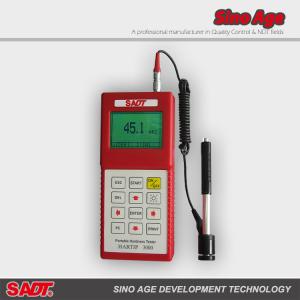

ASTM A956 HARTIP3000 Leeb portable hardness tester with Probe E for
large work-pieces
HARTIP 3000 is an advanced hand-held digital metal hardness tester
with characters of high accuracy,
wide measuring range and easy operation. It is suitable for testing
the hardness of all metals especially
on site for large structure/assembled components. Which is widely
used in the industry of power, petro
chemistry, air space, vehicle, machine and so on.
MEASURING METHOD
The measuring principle of HARTIP series hardness testers is
defined as "the quotient of the impact body's rebound and impact
velocity, multiplied by 1000." An impact body with a Tungsten
Carbide test tip is propelled by spring force against the test
surface and then rebounds back. A permanent magnet is contained
within the impact body. When it passes through the coil on impact
device, it induces an electric voltage which is proportional to the
velocity of the impact body.
KEY FEATURES
Wide measuring range: Rockwell B&C, Brinell, Vickers, Shore and
HL
Automatic conversion to Brinell, Rockwell, Vickers and Shore
Test in any directions
Probes: D, DC, DL, C, D+15, E, G
All probes interchangeable
Menu operation
Large LCD display with backlight
RS232/USB interface to PC and micro-printer
Automatic mean, max., min. value display
Data management software
Specifications
| Model | SADT HARTIP 3000 |
| Principle | Leeb hardness measurement |
| Accuracy | ±0.5% @ HL=800 / ±4HL |
| Display | Large graphic LCD with EL backlight |
| Hardness scale | HL/HRC/HRB/HB/HV/HS |
| Measuring range | HL200-960/ HRC19-70/ HRB13-109/ HB20-655/
HV80-1027/ HS31.9-102.8 |
| Probe | D (Standard)
DC/D+15/C/G/E/DL (Optional) |
| Materials | 9 common metal materials |
| Memory | 960 data in 8 blocks, can be saved and rereadable |
| Statistics function | Average / Max. / Min. /S. value |
| Indicator | Low battery |
| Communication | RS232/USB to PC for transferring data |
| Print | RS232/USB to micro printer |
| Power supply | 1.5V AA battery x 4 |
| Working environment | -10~+45ºC |
| Dimension (mm) | 195x84x38 |
| Net weight (g) | 550 |
| Standards | Conforming to ASTM A956, DIN 50156, GB/T 17394-1998 |
Special Features of
Impact Devices
| Type | Brief description |
| D | Universal standard unit for majority of hardness testing assignments. |
| DC | Extremely short impact device, other specs identical with type D. |
| Application: | - highly confined spaces |
| - holes and cylinders |
| - internal measurements on assembled machines |
| D+15 | Slim front section |
| Application: | - grooves and recessed surfaces. |
| DL | Extremely slim front section |
| Application: | - extremely confined spaces |
| - base of grooves |
| C | Reduced impact energy ( compared with type D). |
| Application: | - surface hardened components, coatings |
| - minimum layer thickness: 0.2mm. |
| - thin walled or impact sensitive components (small measuring
indentation). |
| E | Synthetic diamond test tip (approx.5000 HV). |
| Application: | - extremely high hardness measurement such as high carbon steel up
to 1200 HV |
| G | Increased impact energy(approx. 9 times that of type D) |
| Application: | - Brinell hardness range only |
| | - heavy cast and forged parts with lower demands on surface finish. |
